Mini Compact Excavator HONDA GX390 Engine, 65.7” Max. Digging Depth, 2100 LBS Operating Weight, MEC12
Mini Compact Excavator HONDA GX390 Engine, 65.7” Max. Digging Depth, 2100 LBS Operating Weight, MEC12
Regular price
$5,999.00
Regular price
$5,999.00
Sale price
$8,199.00
Unit price
per
Couldn't load pickup availability
Mini Compact Excavator HONDA GX390 Engine, 65.7” Max. Digging Depth, 2100 LBS Operating Weight, MEC12
Regular price
$5,999.00
Regular price
$5,999.00
Sale price
$8,199.00
Unit price
per
- MEC12 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.
- Powered by Honda GX390 389cc 11.7HP air-cooled engine, high compression ratio for better fuel efficiency.
- Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
Note！
- The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
Product Features :

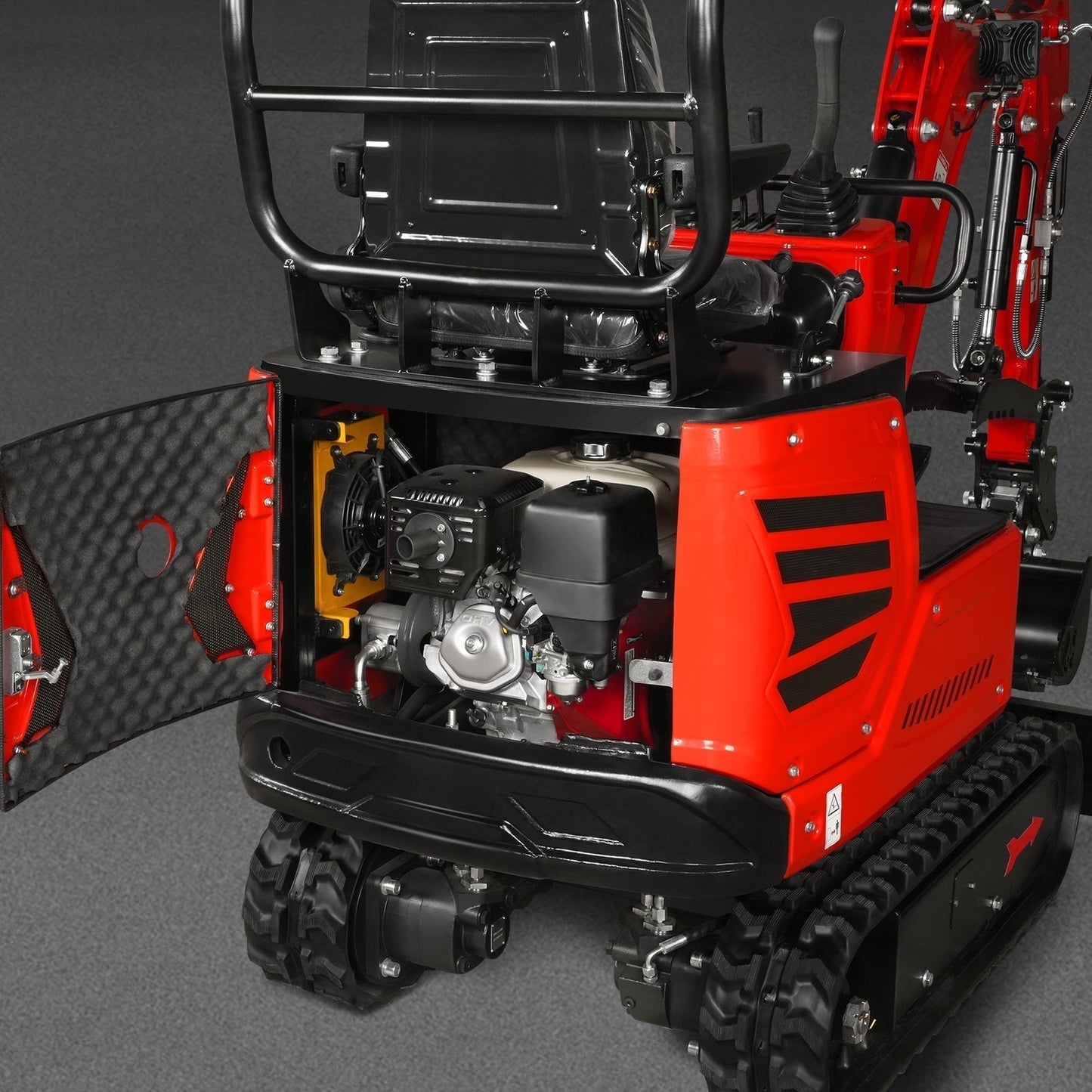

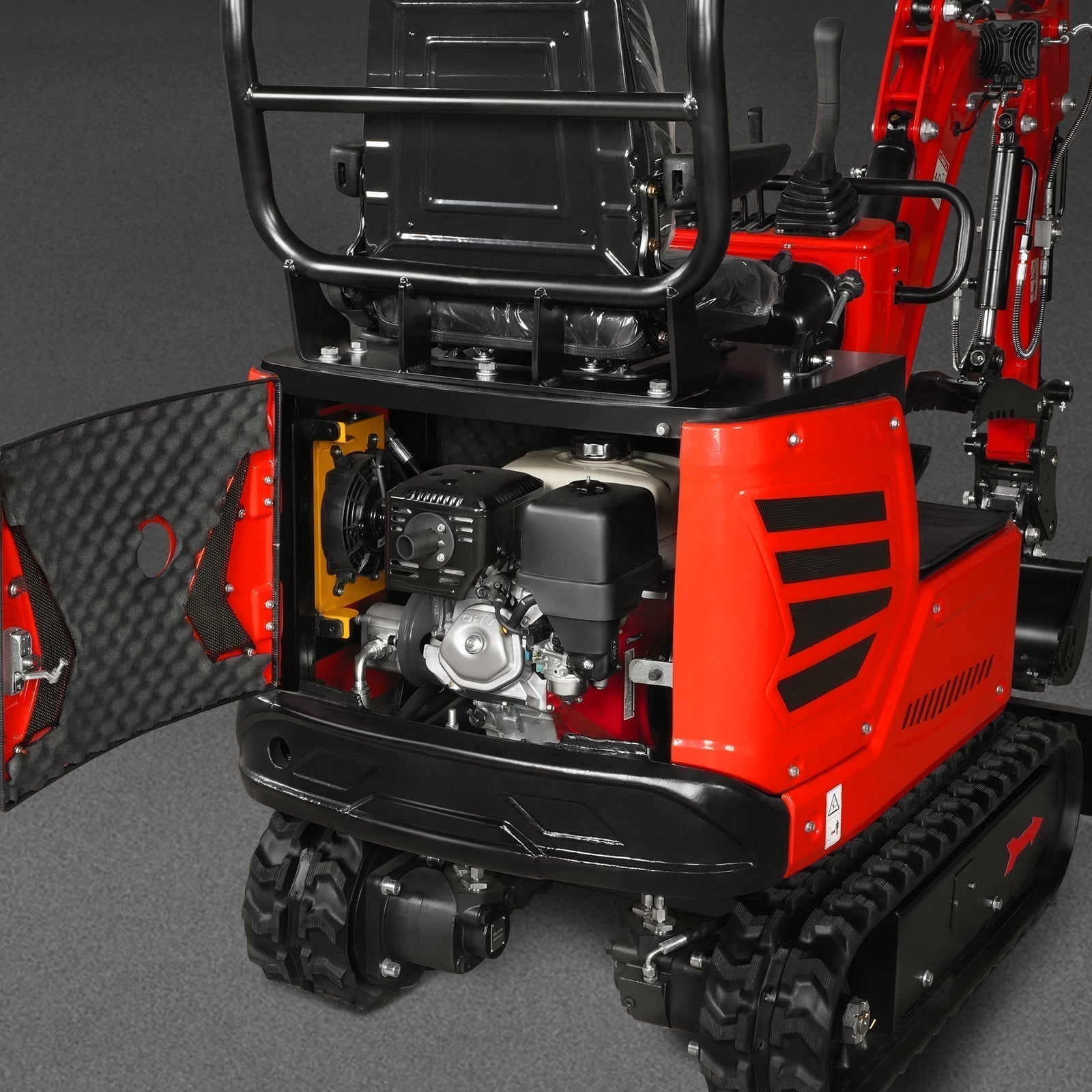

With the GX390, you’re looking at some of the best engines in the business. Powerful, reliable, durable, and quiet. Honda’s GX Series is power you can trust. Honda’s GX series engines are legendary for superior reliability and performance. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

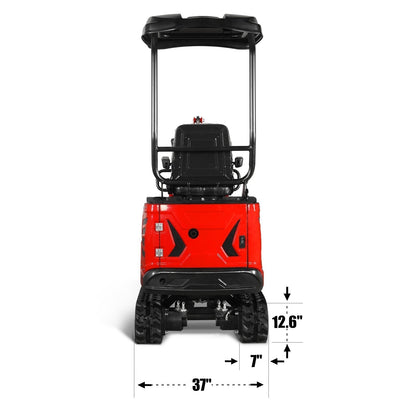

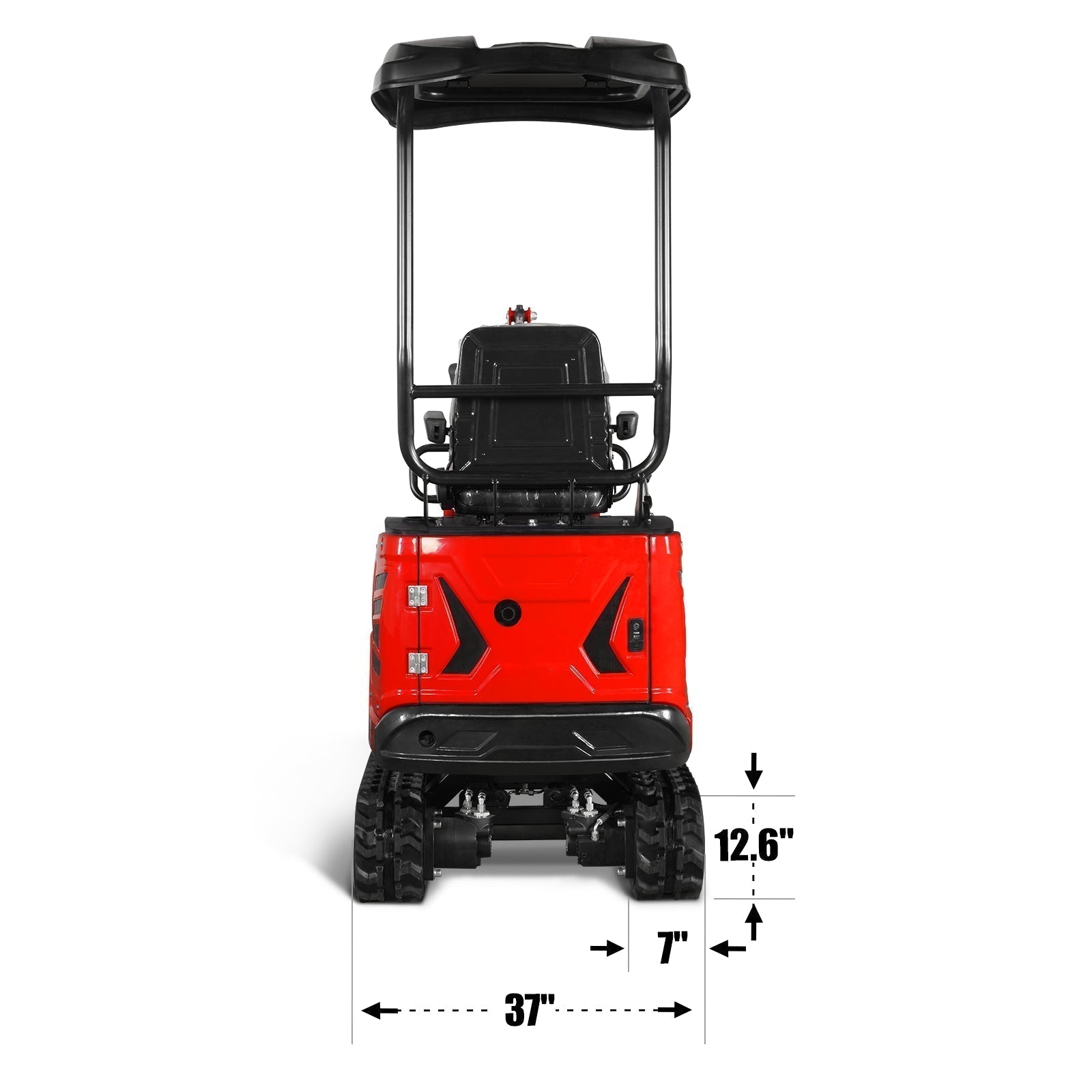

Chassis Width
At 37 in, its chassis width is much smaller than a standard excavator, making it ideal for working in backyards, narrow alleys, and other tight spaces.

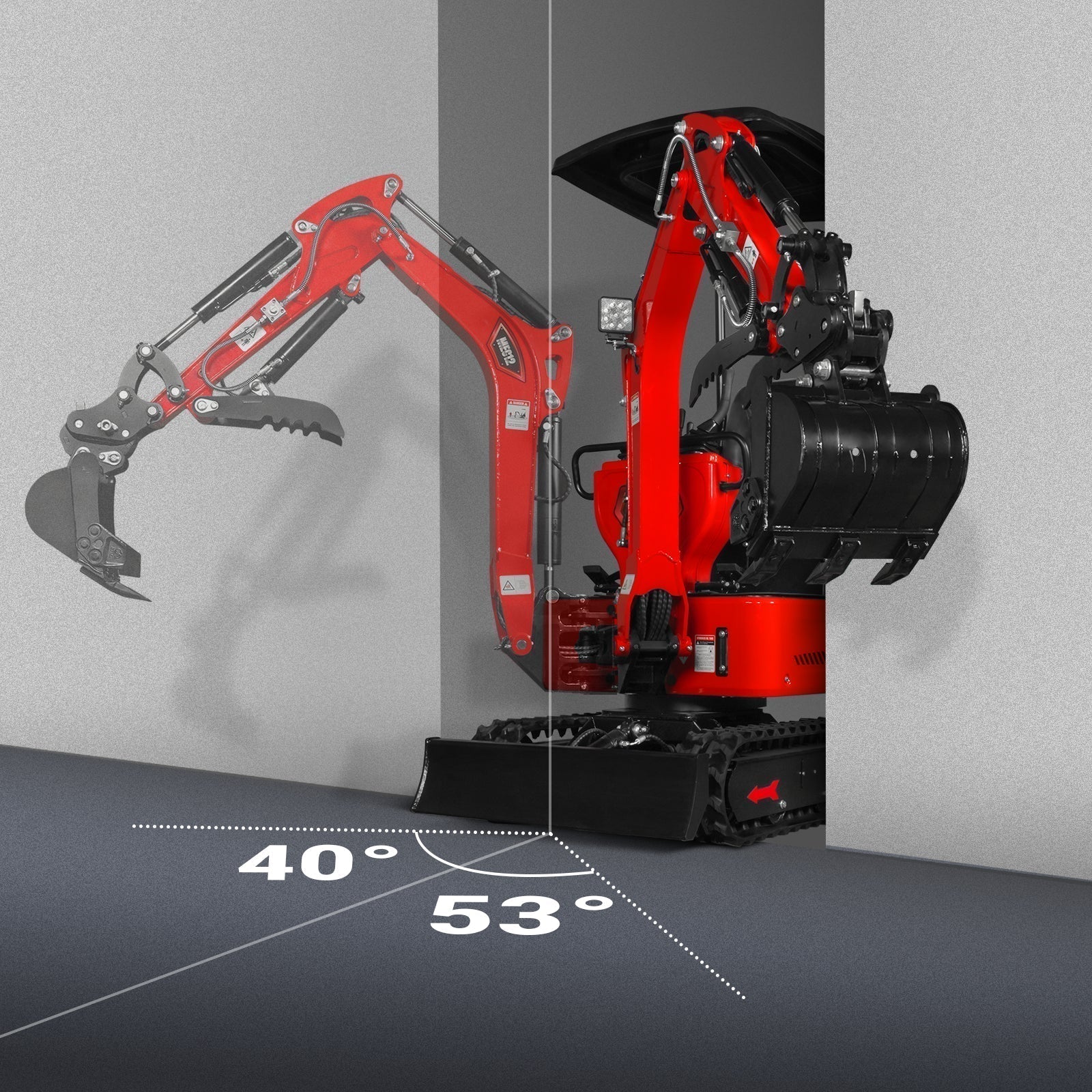

Swing Arc
The digging arm can swing left and right, turn 53 degrees to the left and 40 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.
Digging Depth
It features an all-around 65.7-inch digging depth reach capability and a 119-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

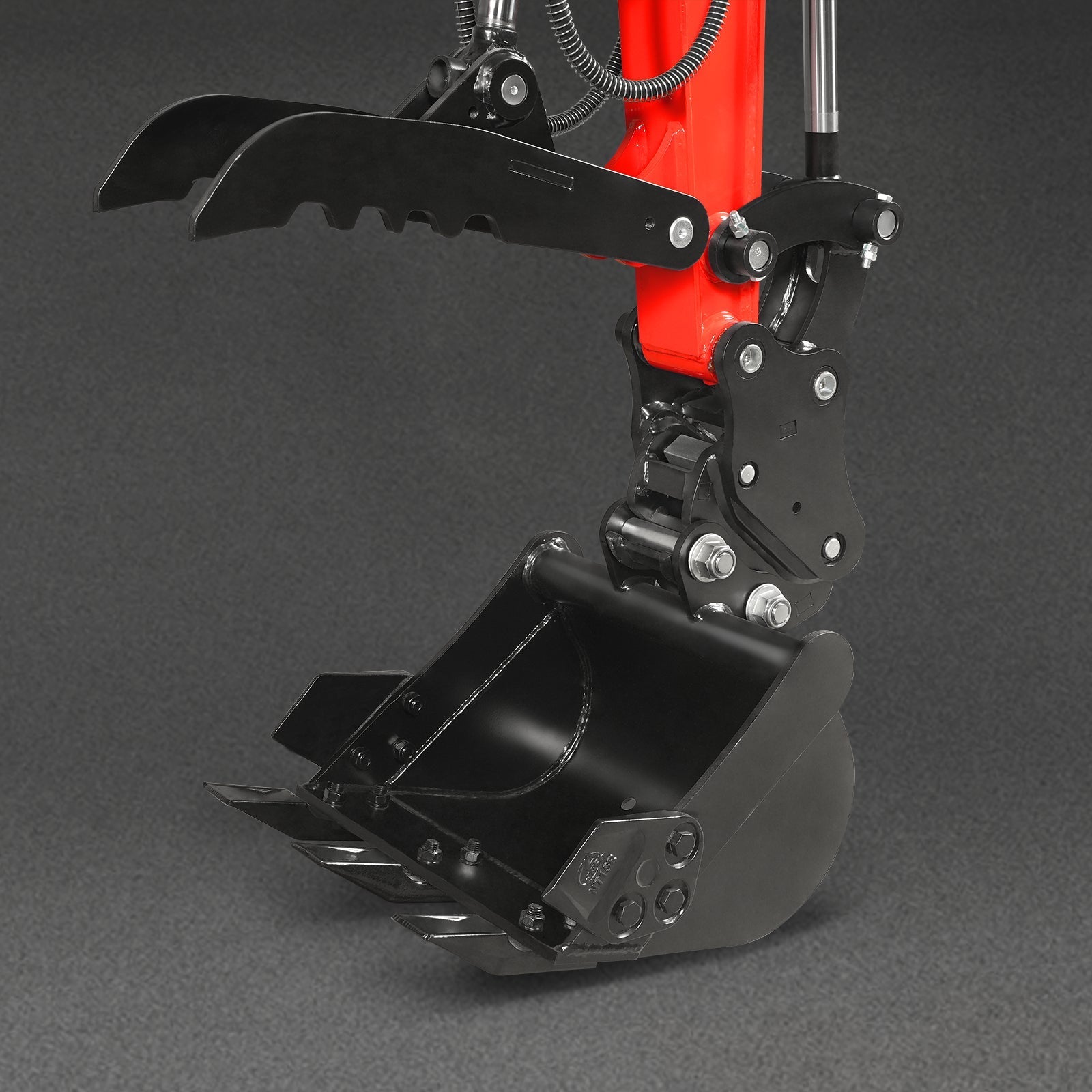

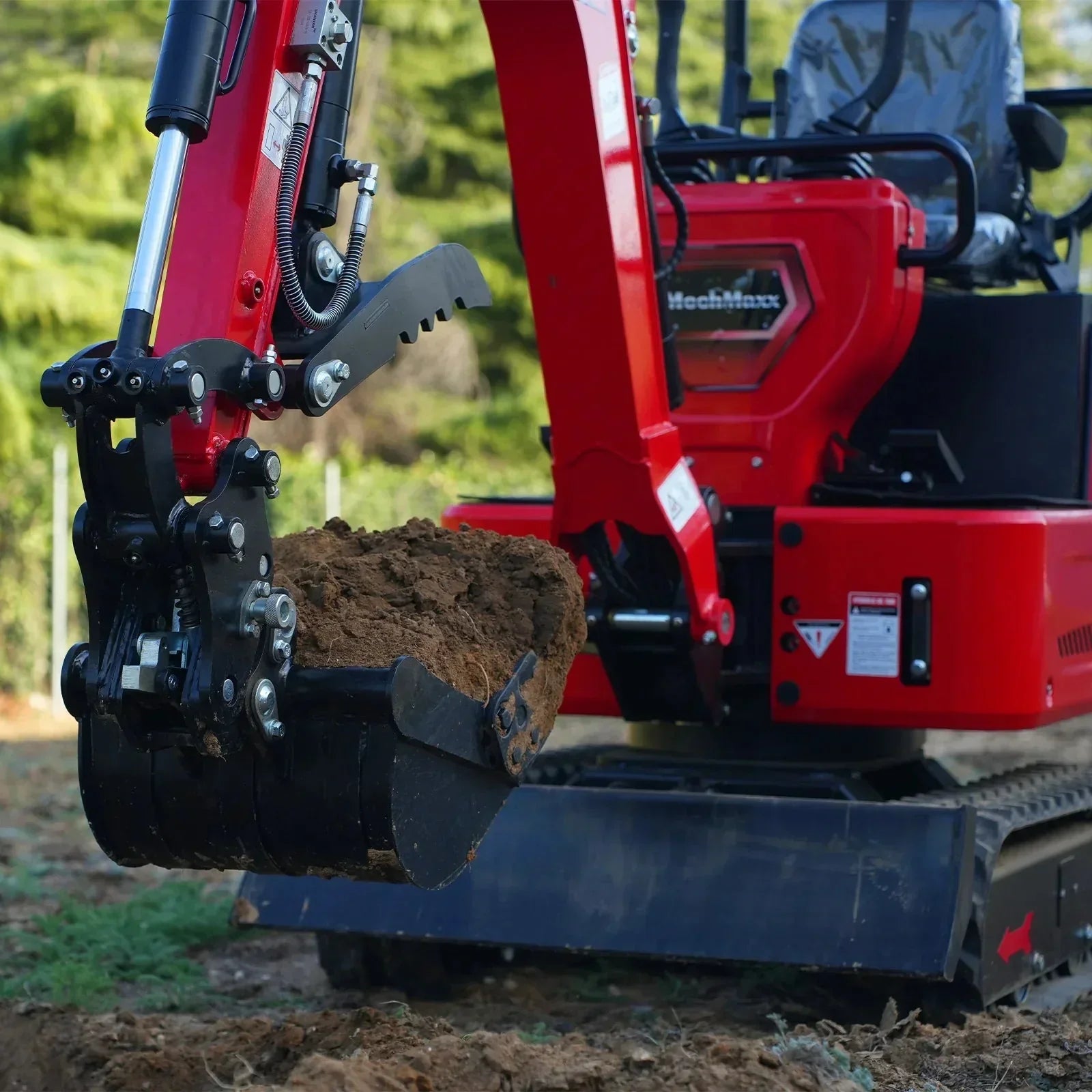

Hydraulic Thumb
The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
Semi-automatic Quick Hitch
The quick hitch is made of durable steel, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.
Hydraulic Oil Radiator
Hydraulic oil radiator can cool the hydraulic oil, preventing overheating and ensuring proper system operation. It works by dissipating heat from the oil as it circulates through the system, can prevent damage to components and ensure the system's efficiency and longevity.
Specifications :
| Standard Bucket Capacity | 0.7 cu-ft | Auxiliary Std Flow | 5.7 gal/min |
| Standard Bucket Width | 15 in | Max. Tractive Force | 3035 lbf |
| Max. Travel Speed | 1.86 mile/h | Arm Digging Force | 1191 lbf |
| Swing Speed | 11 RPM | Bucket Digging Force | 1619 lbf |
| Max. Gradeability | 30° | Rated Lift Capacity | 728 lb |
| Track Ground Pressure | 35 kpa | Lift Radius | 80 in |
| Hydraulic Oil Tank Capacity | 3.96 gal | Operating Weight | 2100 lb |

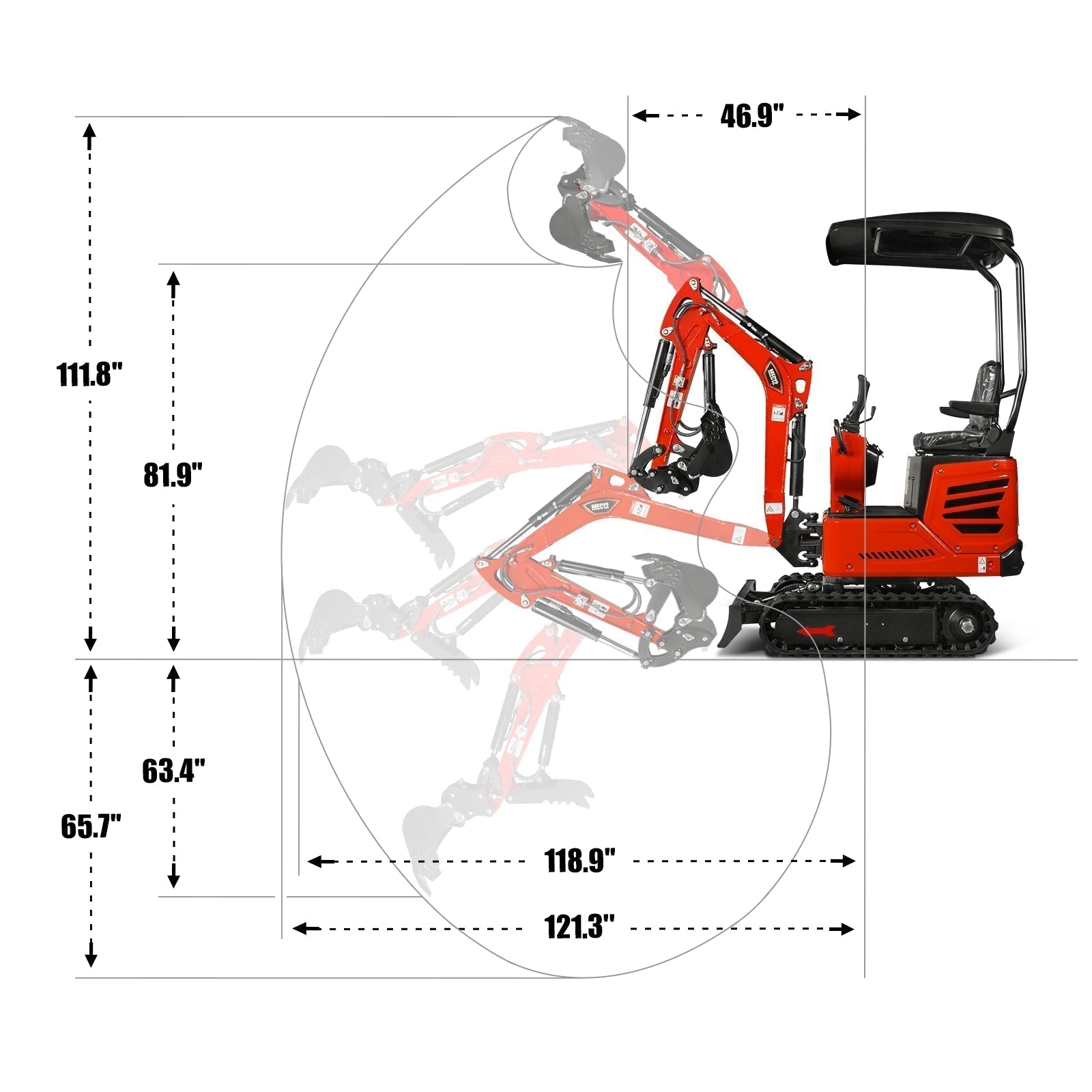

| Operating Range | |||
| Max.Digging Radius On Ground | 119 in | Max. Vertical Digging Depth | 63.3 in |
| Max. Digging Depth | 65.7 in | Min. Turning Radius | 46.8 in |

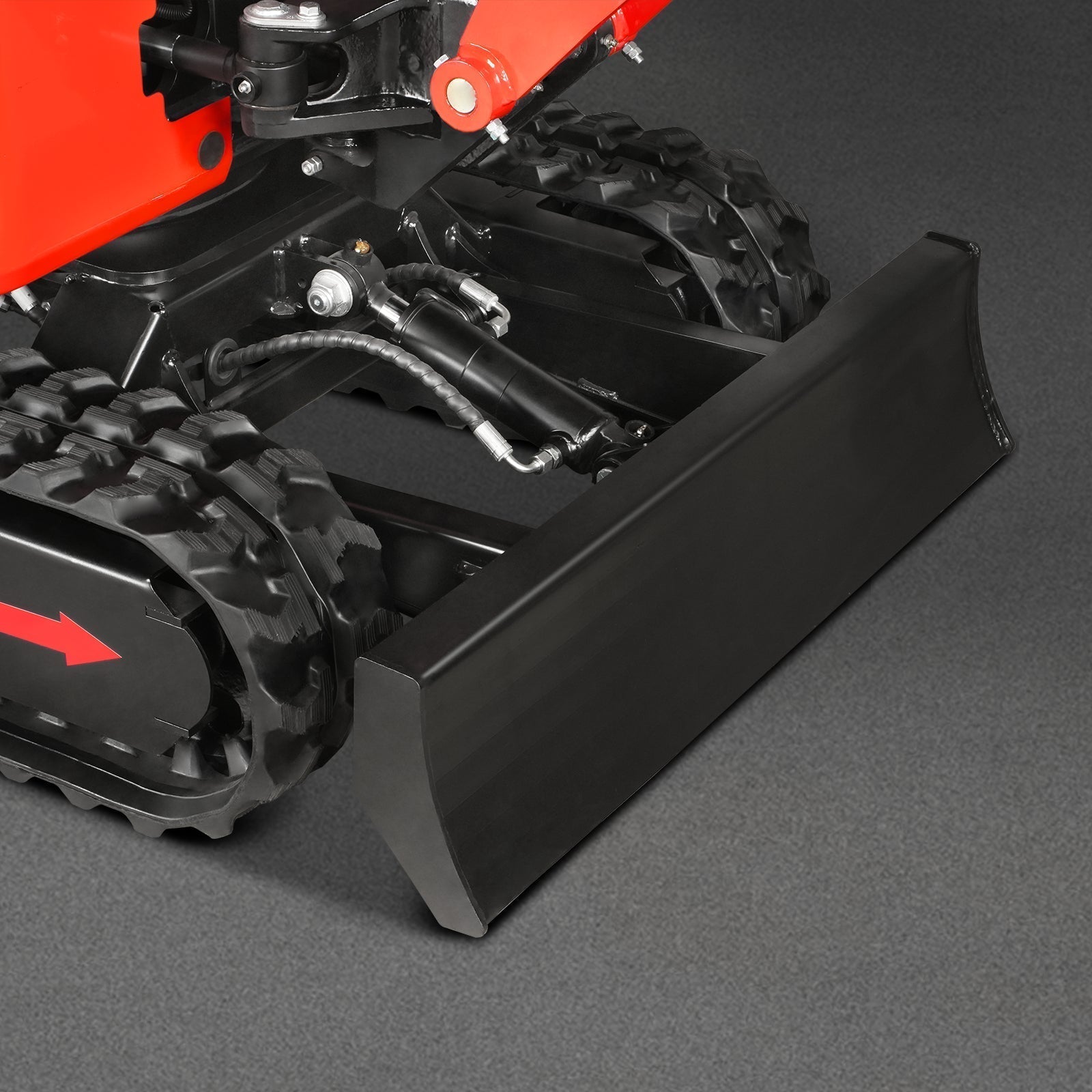

| Overall Operating Height (Fully Raised) | 111.8 in | Max. Lifting Height Dozer Blade | 5.9 in |
| Max. Digging Radius | 121 in | Max. Depth Dozer Blade | 7.4 in |
| Max. Unloading Height | 81.8 in | ||

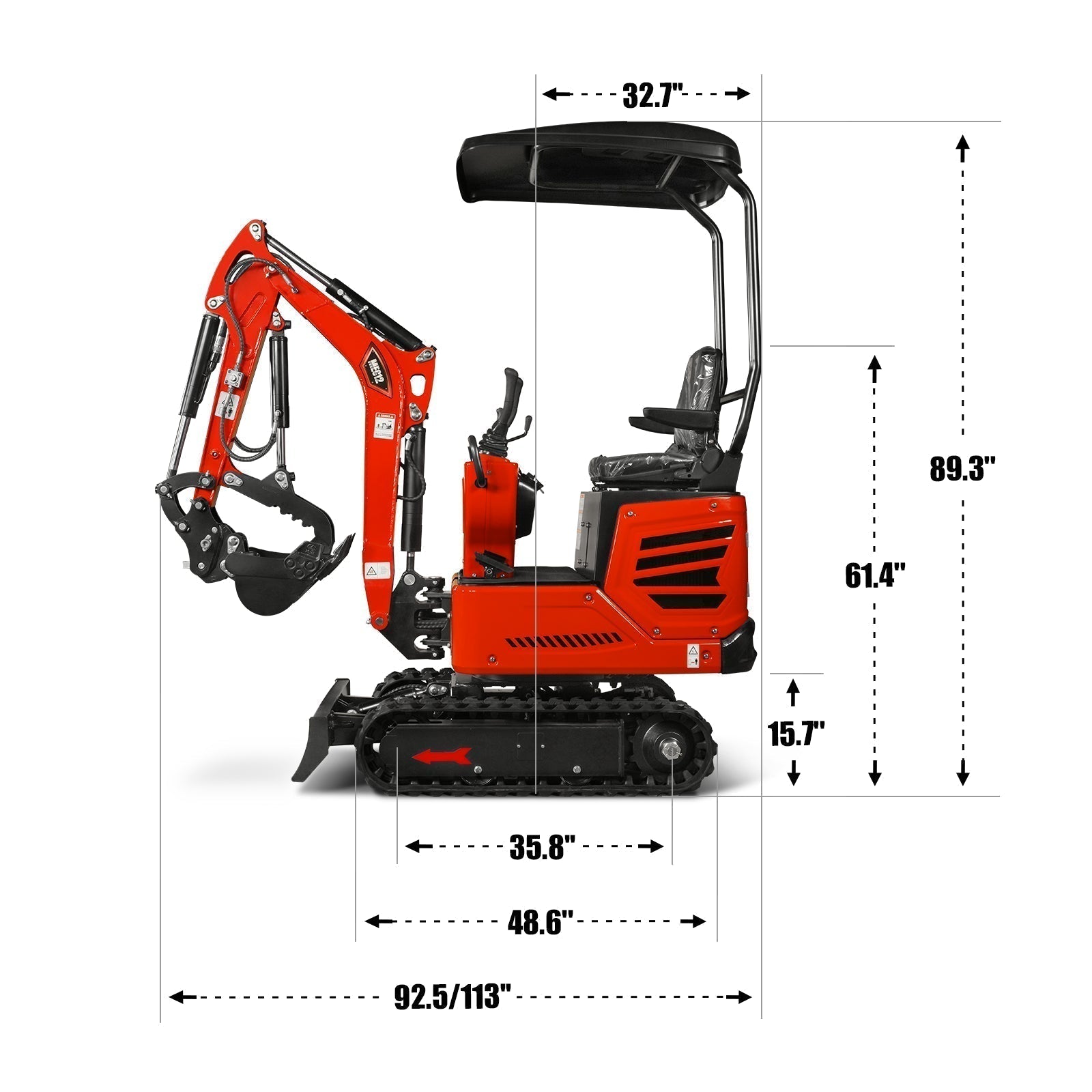

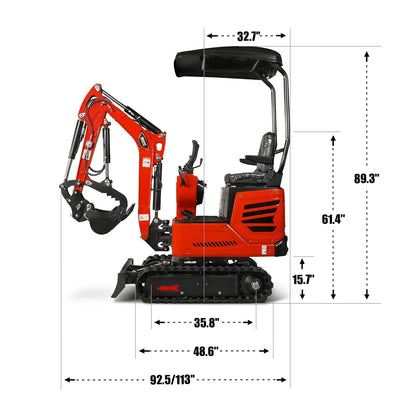

| Main Dimensions | |||
| Wheel Track | 35.8 in | Track Height | 12.6 in |
| Track Length | 48.6 in | Transportation Length | 92.5/113 in |
| Upper Chassis Ground Clearance | 15.7 in | Height Of Seat To Ground | 61.4 in |
| Counterweight Turning Radius | 32.6 in | Overall Height | 89.3 in |
| Chassis Width | 37 in | Boom Swing-Right | 40° |
| Track Width | 7 in | Boom Swing-Left | 53° |
| Engine | |||
| Model | Honda GX390 | Max. Net Torque | 26.5 N.m/2500 RPM |
| Displacement | 389 cc; 11.7 HP | Fuel Tank Capacity | 1.6 gal |
| Engine Type | 4-stroke, overhead valve, single cylinder | Engine Oil Capacity | 0.3 gal |
| Start Type | Electric start | Engine Oil Type | 10W-30 |
| Rated Power | 8.7 KW/3600 RPM | Warranty | 1 Year |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
