Product Overview

  • Fully capable of cutting large 36" logs and planks up to 7" wide in 1/2 the time compared to a regular chainsaw.
  • It comes equipped with a reliable, high-performing engine that can be used over an extended period of time.
  • The gearbox is belt-driven via a clutch, which smoothly transfers power from the engine to the machine; maximizing operating efficiency.
  • Can withstand heavy workloads for long hours, even in remote areas.
  • The cutting thickness of each log can be adjusted. You will have the full ability to mill the wood to any size you for your desired project.

    Product Features

    The Honda GX690 Horizontal V-Twin OHV Engine is the ultimate powerhouse for your custom pressure washers rigs and builds. Featuring an electric start and a robust 17-amp charging system, this 688cc engine delivers an impressive 25 net horsepower, ensuring your equipment operates at peak performance. Designed with a 1-1/8’’x 3.78’’ crankshaft and an oil pressure indicator for maximum reliability, Model GX690 is the perfect engine to elevate your pressure washing and soft wash projects. Build with confidence and power up your business with Honda's unmatched quality and durability.

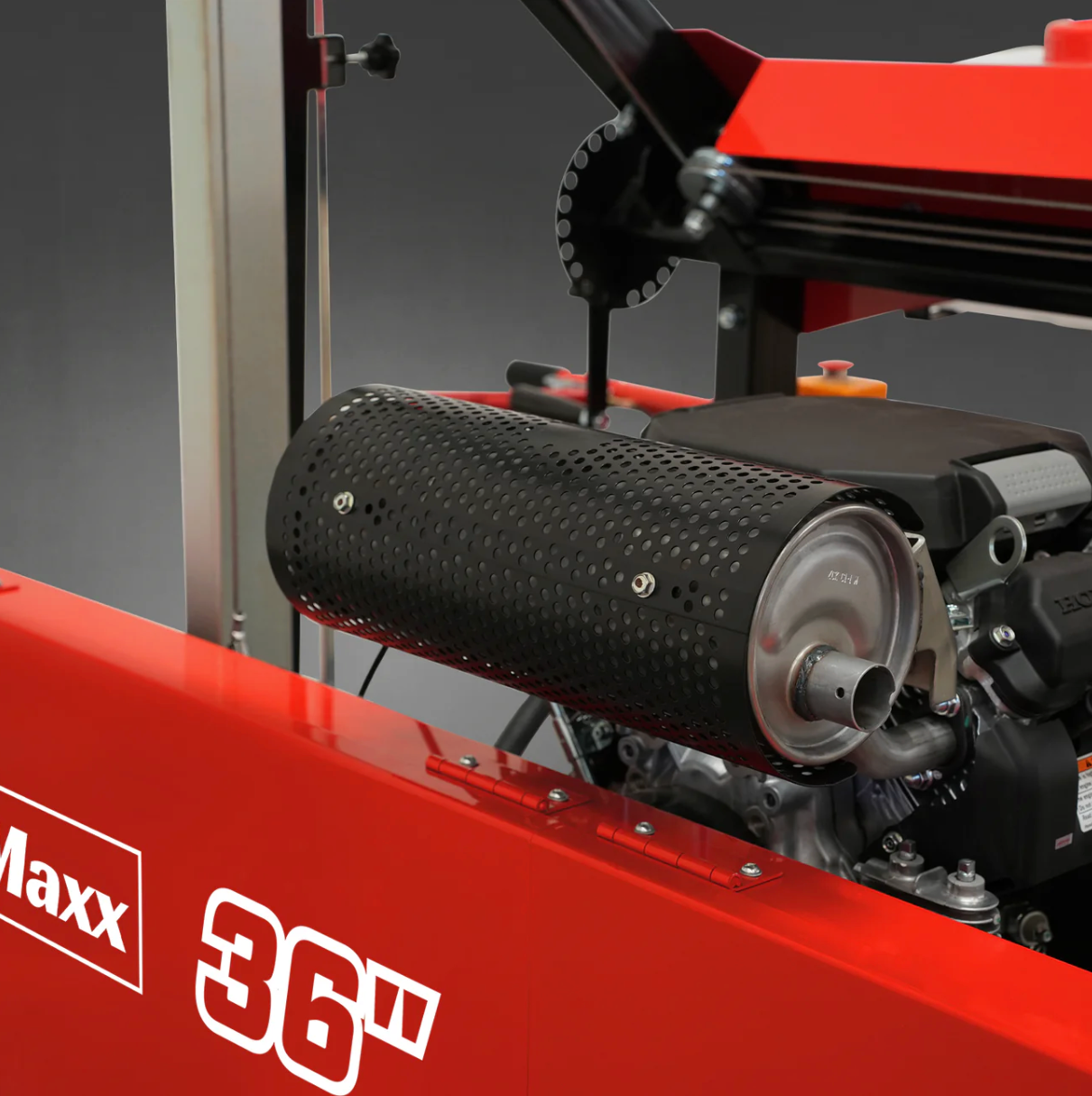

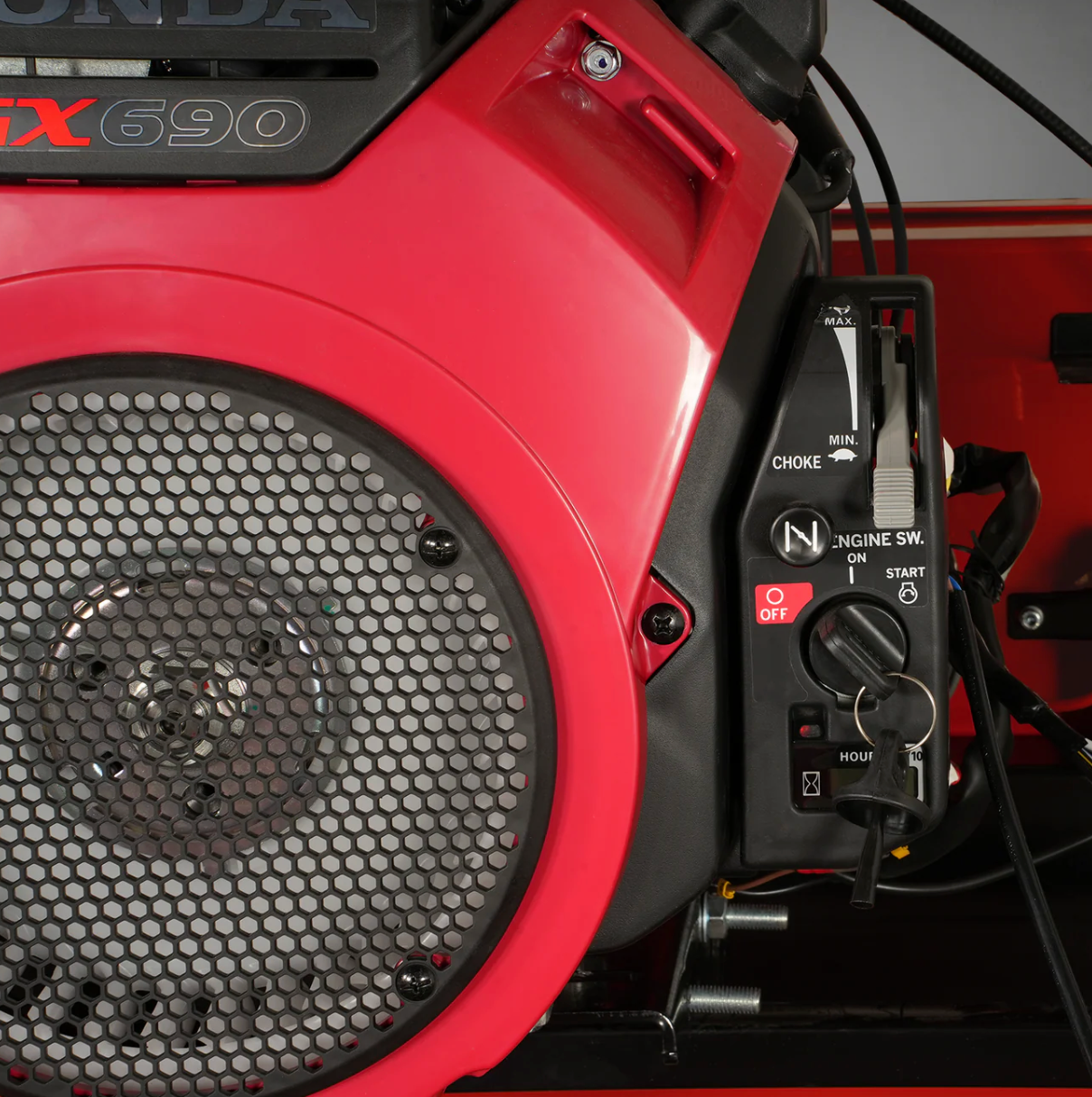

    Electric Start
    This sawmill is equipped with an electric-start Honda engine, which has excellent performance, reliable quality and can be used for a long time.
    Adjustable Cutting Thickness

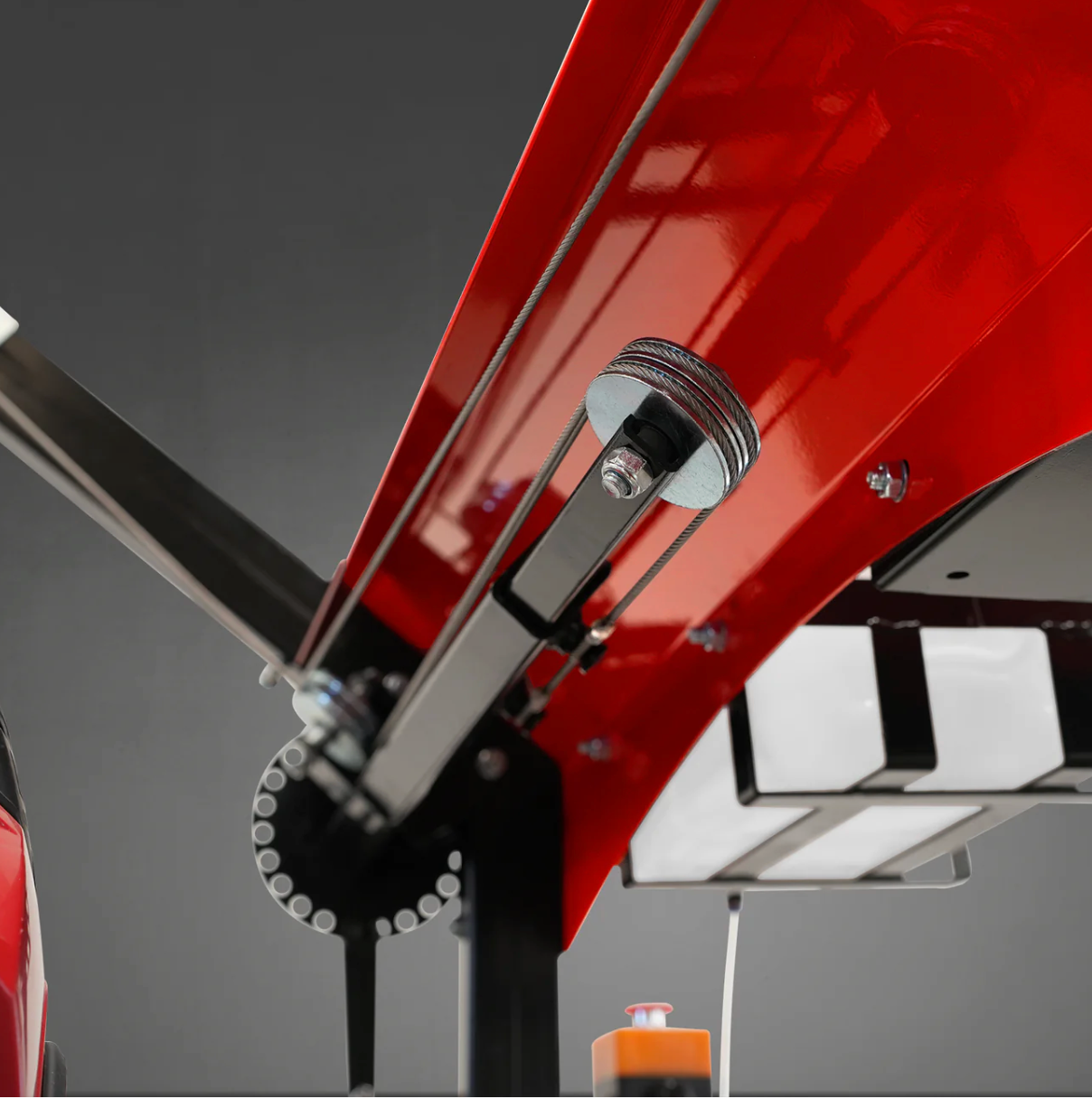

    The handle rotates through 23 locking locations ensuring precise and consistent control. The cutting thickness can be adjusted by rotating the handle to choose the right board for you, and the maximum thickness of the board can be cut up to 7’’.
    Maximum Log Diameter
    This sawmill can cut a variety of logs, and can cut logs with a maximum log diameter of 36”.
    Emergency Stop Button
    There is an emergency stop button on the top of the log, which can stop the machine at any time in an emergency.
    Maximum Cutting Width
    According to the diameter of the log, the cutting width of the log can be adjusted by adjusting the length of the saw blade. The maximum cutting width is 35’’.
    Throttle Handle
    You can control the cutting speed by pushing this handle, and you can speed up or slow down at any time, making the wood cutting process fast and efficient, and reducing the number of steps required to meet your cutting requirements for wood boards.

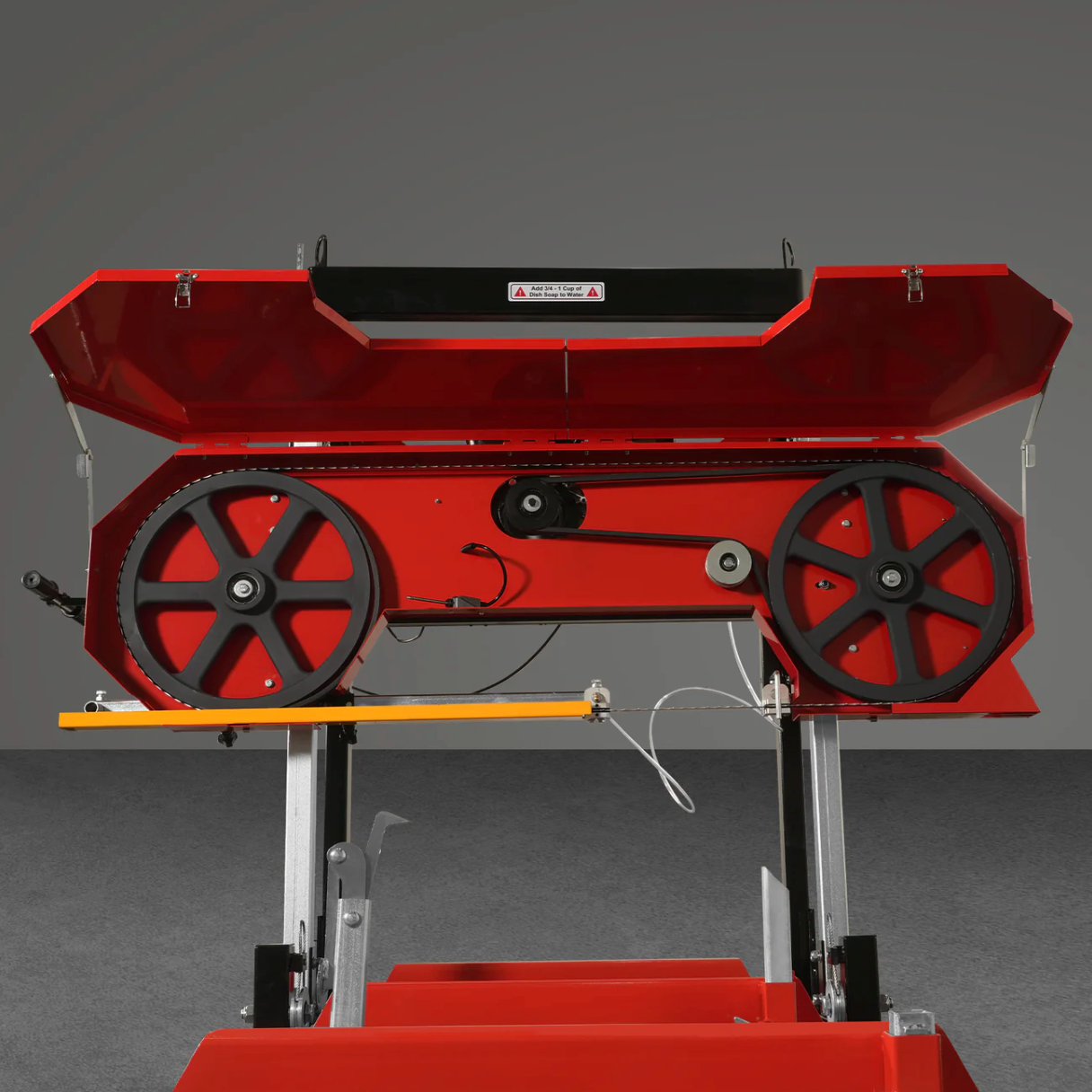

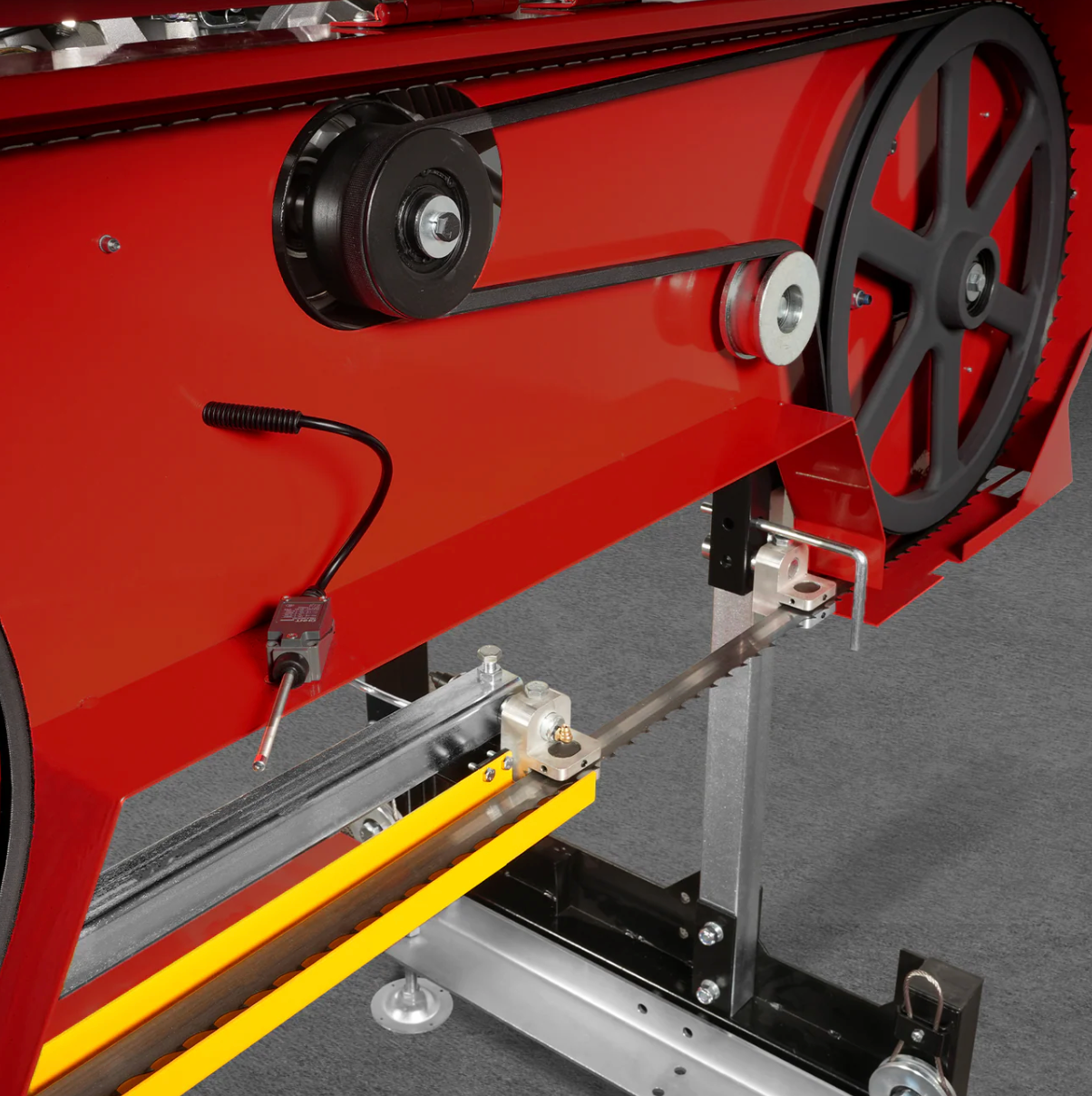

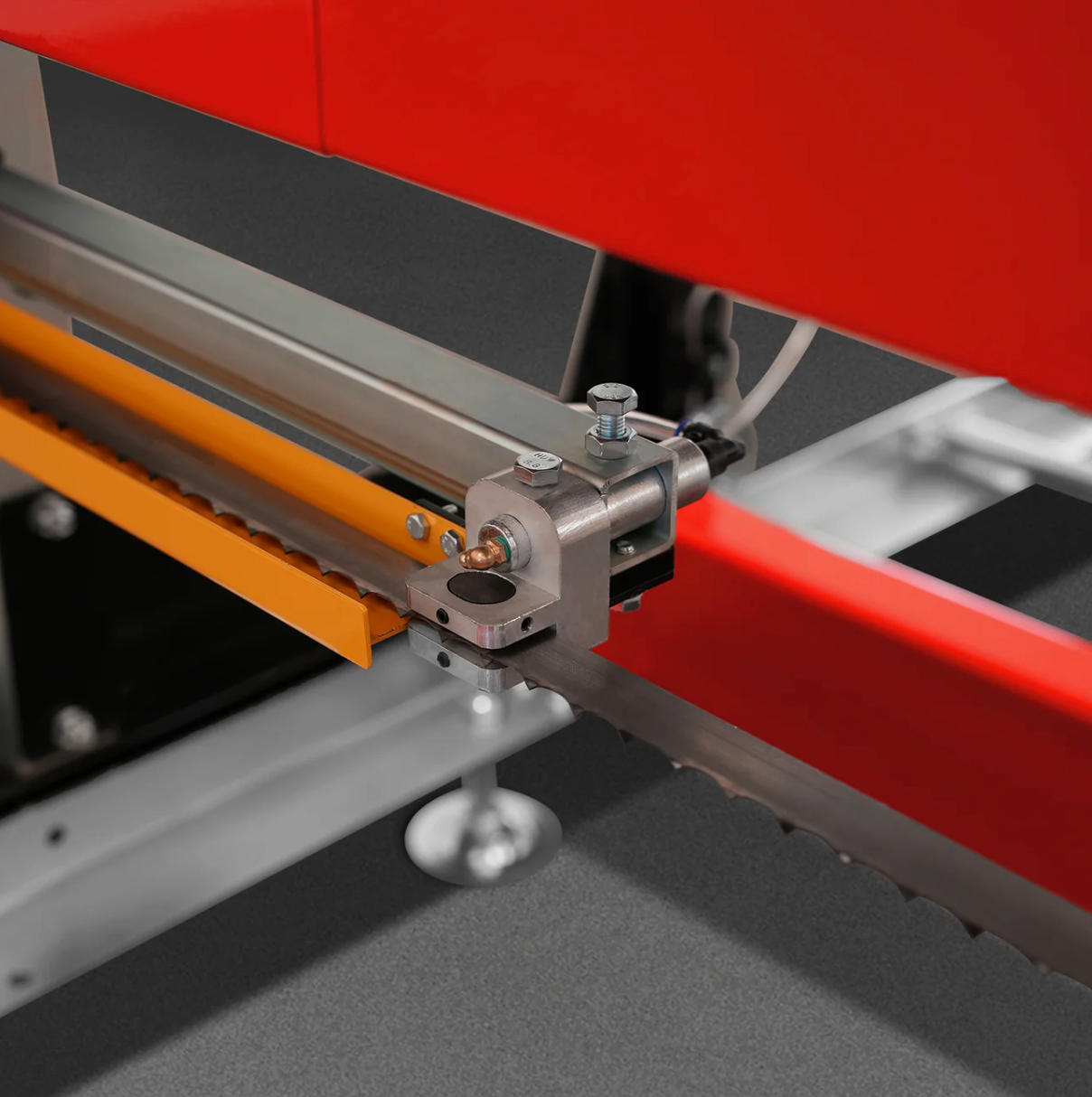

    Saw Blade
    The saw blade made of carbonized steel is very strong, with dimensions of 175*1.3*0.04’’, and the rotation speed can be as high as 787’’ per second, which can ensure smooth and stable cutting while reducing wood chips and increasing the amount of wood.
    Spiral Log Clamp
    The track features easy-to-use spiral log clamps to hold logs securely while milling.

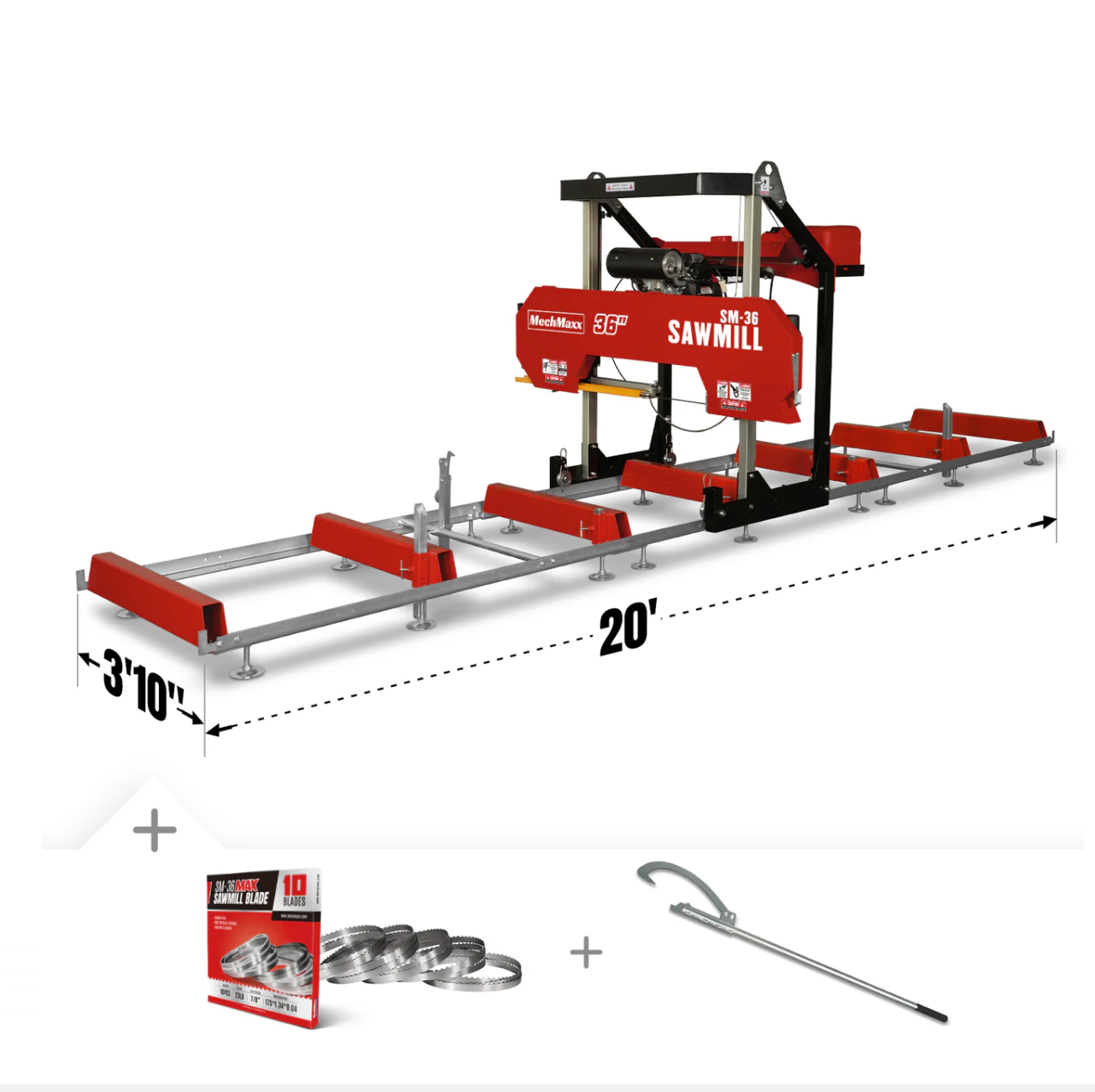

    Cutting Length
    The logs are equipped with a 194” standard log track, and you can purchase a 78” extension track at MechMaxx according to your needs.

  • You can manually adjust the saw head direction to have full control over the cutting process for a safer and smoother outcome.



Specifications

Engine HONDA GX690 Lubricant Tank Size 4gal
Engine Type Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling Fuel Tank Size 6.3 gal
Engine Displacement 688 cc Track Load-Bearing 5 ton
Horsepower 25 HP Track Width 3 ft 10 in
Start E-Start Track Length 20 ft
Log Diameter 36 in Track Extension Length 6.4 ft
Max Live Edge Width 35 in Leveling Feet 18
Standard Cutting Length 16.2 ft  Log Rests 2 Long and 2 Short Rests
Max Board Thickness 7 in Log Clamps 2 x Quick Lock
Blade Engagement System Centrifugal Clutch Track Bunks 3 x 6 in
Cast Iron Bandwheel Diameter 19 in 4 Post Head Design Yes
Blade Wheel Engagement Belt Drive Finish Powder Coat Paint Galvanized Steel
Blade Guide By Roller Sawmill Warranty 2 Years
Blade Tension By Adjustable Lever Engine Warranty 2 Years
Blade Size 175 x 1.3 in Package Method Wood
Blade Pitch 7/8 in Packing Size 90 x 28.5 x 34 in
Blade Lubrication Water Lube - Manual Valve Weight(N.W./G.W.) 1133/1257 lbs
